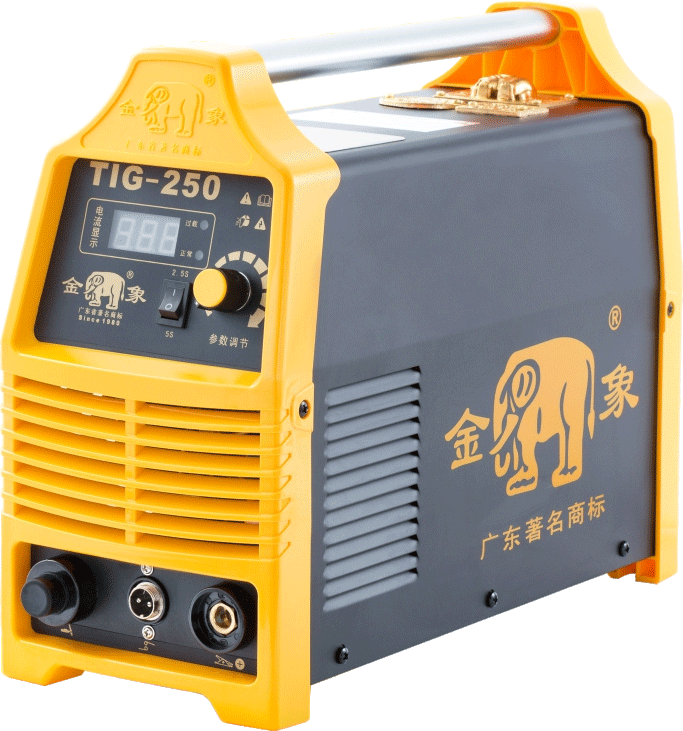

TIG-250 Inverter TIG Welding Machine
TIG-250 逆变氩弧电焊机
Golden Elephant TIG Inverter TIG Welding Machine Series
This is an inverter TIG welding machine series developed with our 40 years of manufacturing experience. It adopts high-frequency PWM technology with MOSFET and IGBT power tubes over 100KHZ. It delivers smooth load output with stepless DC power supply. The main transformer of the welder is greatly reduced in weight and volume, with efficiency increased by 60%. It is lightweight, energy-saving and reliable, featuring good dynamic characteristics, stability and robustness. Widely applied in petrochemical, power construction, ship machinery, construction, indoor & outdoor decoration, high-altitude and field operations.
| Product Parameters | Part Details | |
|---|---|---|
| Rated Input Voltage | 220V | Full Copper Inductor |
| Rated Input Power | 6.3KVA | Large Capacitor |
| Frequency | 50/60HZ | Original Imported MOSFET Tube |
| No-load Voltage | 54V | Arc Starter |
| Efficiency | 85% | Application Fields |
| Rated Output Current | 15-200A | Petrochemical / Power Construction / Shipbuilding / Steel Structure |
| Duty Cycle | 30% | Construction Machinery / Indoor & Outdoor Decoration / High-altitude Work |
| Welding Rod | - | Hardware Manufacturing / Metal Welding / Pipeline Maintenance |
| Tungsten Electrode Diameter | Φ1.6×150MM | Applicable Materials |
| Protection Class | IP21 | Stainless Steel |
| Net Weight | 6KG | Accessories |
| Gross Weight | 10KG | QQ150 TIG Welding Torch |
| Product Size | 380×150×300MM | 3m Air Hose |
| Packing Size | 480×280×350MM | Earth Clamp, 3m 16mm² Cable |
Application Range：
